Rubber Track Construction

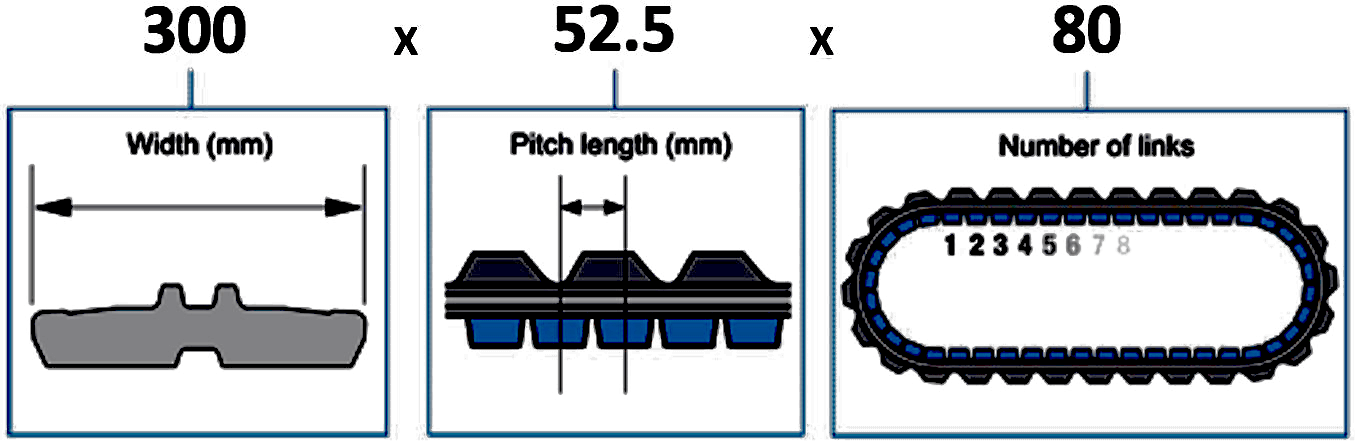

How a Rubber Track is Sized
Width (in mm) x Pitch (in mm) x Number of Links (count)
Example: BOBCAT 331D
300 x 52.5 x 80
(NOTE: Be aware, some manufacturers swap the Pitch and Number of links)
(i.e. 300 x 80 x 52.5)
(You may also see leers "N" or "W" on Excavator tracks. That leer states the guide width is either "Narrow" or "Wide".)
- 1) Make / Model
Examples:
BOBCAT / T190
KUBOTA / SVL 65-2 - 2) Track Width

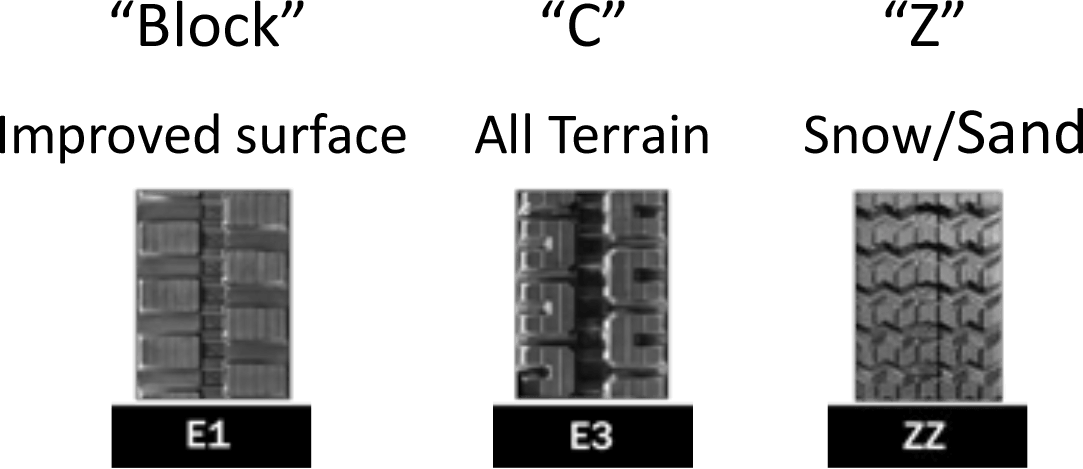

Some models have multiple track widths. - 3) Pattern
Some models have pattern options. Including: “Block” “C” “Z”

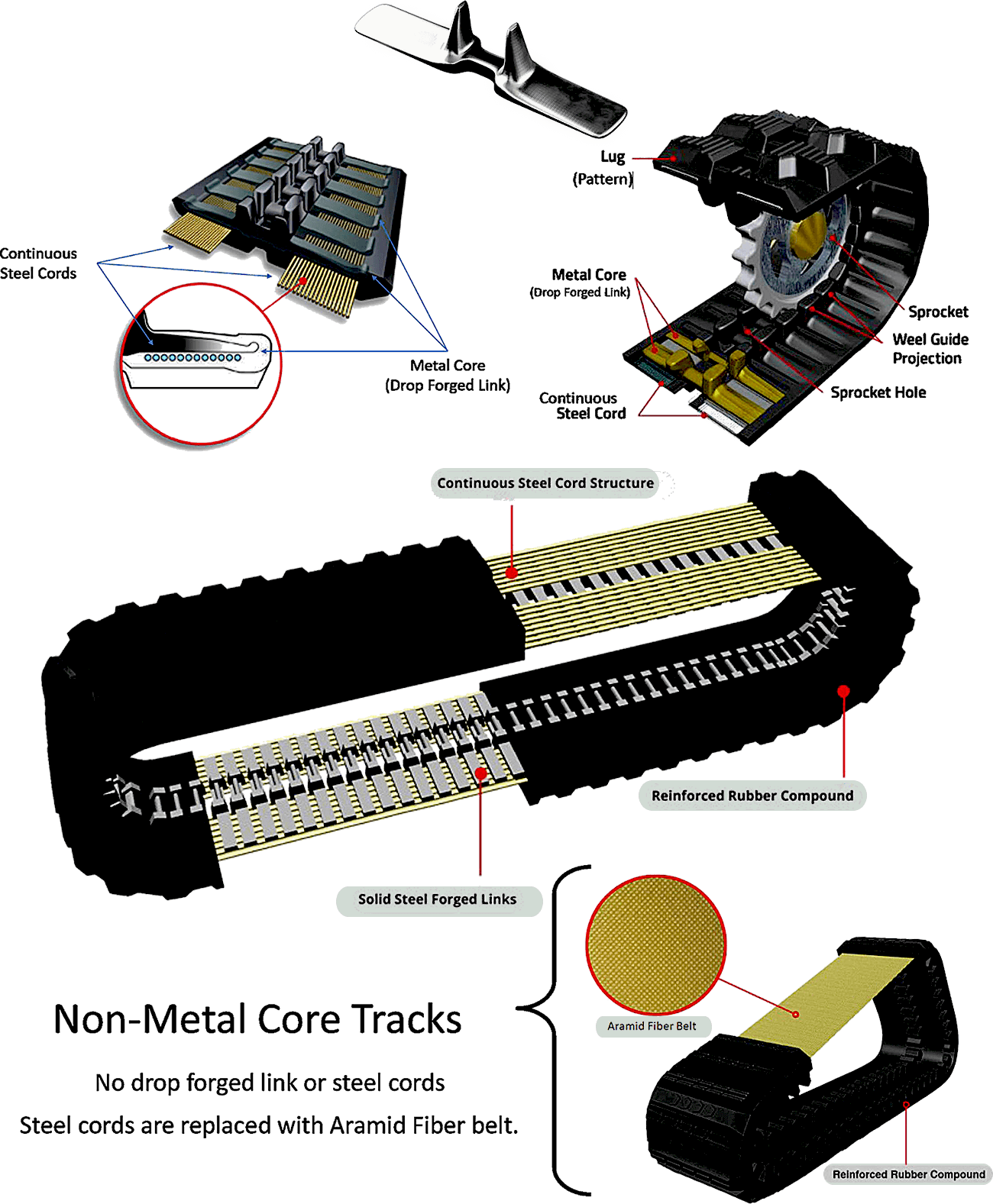

Metal Core (Drop Forged Link) Tracks
